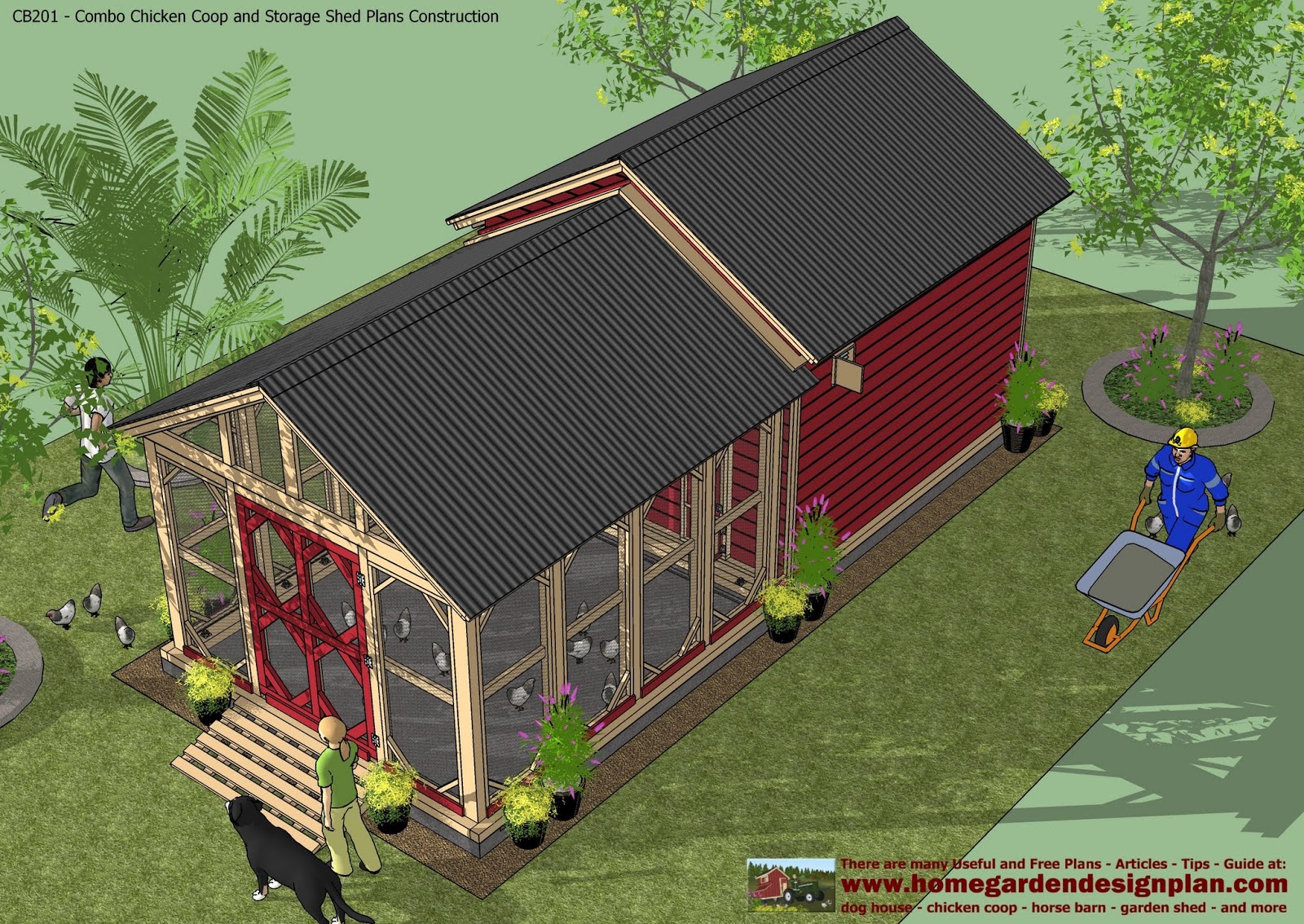

CB201 - Combo Plans - Chicken Coop Plans Construction

Garden Sheds Plans - Storage Sheds Plans Construction

...

It can comfortably hold 20 - 25 chickens

Nest boxes for 8 hens

Units: Inches - fractions

Units: Millimeters - decimal

...
Total land occupancy area: 31 4 1/2"x15 10 7/8"=500,693 Feet ²
Total height: 12 7 3/4"
- Storage Shed: 11x7=77 Feet ²
- Chicken Cage: 11x5=55 Feet ²
- Chicken Run: 11x12=132 Feet ²
- Construction area: 307,76 Feet ²
Total volume of wood: 555195 inches3 (= 321 feet3)
...
Total land occupancy area: 9563 x 4849 = 46266649 mm²
Total height: 3854 mm
- Storage Shed: 2134 x 3353 = 7155302 mm²
- Chicken Cage: 1524 x 3353 = 5109972 mm²
- Chicken Run: 3658 x 3353 = 12265274 mm²
- Construction area: 28591878 mm²
Total volume of wood: 8.8 m3
...

Dimensional lumber sizes:
a: 4"x4" (Nominal) = 3 1/2"x3 1/2" (Actual)
b: 2"x4" (Nominal) = 1 1/2"x3 1/2" (Actual)
c: 2"x2" (Nominal) = 1 1/2"x1 1/2" (Actual)
d: 1"x2" (Nominal) = 3/4"x1 1/2" (Actual)
e: 2"x6" (Nominal) = 1 1/2"x5 1/2" (Actual)
f: 1"x4" (Nominal) = 3/4"x3 1/2" (Actual)
g: 1"x6" (Nominal) = 3/4"x5 1/2" (Actual)
k: 1"x1" (Nominal) = 3/4"x3/4" (Actual)
h: 1" thickness (Nominal) = 3/4" thickness (Actual)
n: 1"x8" (Nominal) = 3/4"x7 1/4" (Actual)
m: 2"x8" (Nominal) = 1 1/2"x7 1/4" (Actual)
Units: Inches - fractions
...
a: 100x100 (Nominal)=89x89 (Actual)
b: 50x100 (Nominal)=38x89 (Actual)
c: 50x50 (Nominal)=38x38 (Actual)
d: 25x50 (Nominal)=19x38 (Actual)
e: 50x150 (Nominal)=38x140 (Actual)
f: 25x100 (Nominal)=19x89 (Actual)
g: 25x150 (Nominal)=19x140 (Actual)
k: 25x25 (Nominal)=19x19 mm (Actual)
h: 25 thickness (Nominal)= 19 thickness (Actual)
m: 50x200 (Nominal)=38x184 (Actual)
n: 25x200 (Nominal)=19x184 (Actual)
Units: Millimeters - decimal
...
The functional component - the build step guide - Table of Contents:
0.0 - 0.6 - Concept design
1.0 - Building a hole for the foundation
1.3 - Building Column
2.0 - Building the Main Frame Structure
3.0 - Building the Nest boxes
4.0 - Building the Interior Wall
5.0 - Building Perches for chickens
6.0 - Building the Frame of Door, Windows - Vents
6.6 - Building Automatic chicken door and Standard chicken door
7.0 - Building Roof beam
8.0 - Building Fiberglass Insulation for Wall
9.0 - Building Exterior Wall
10.0 - Building the Doors and Windows
11.0 - Building Ramp
12.0 - Building completed roof
13.0 - 14.0 - Building Chicken Run
15.0 - Perspective - The building was completed
...

CB201 - Combo Plans - Chicken Coop Plans Construction

Garden Sheds Plans - Storage Sheds Plans Construction

...

CB201 - Combo Plans - Chicken Coop Plans Construction

Garden Sheds Plans - Storage Sheds Plans Construction

...

Detailed Plans For Construction

(Newly Upgraded Version)

...

Im upgrading the entire plan, and I always do so, I am reducing the volume of wood in construction and still achieve what we want, to save money, build faster, easier,

I am presenting a plan for a better way with less drawing, to save money on printing and viewing time, download time,

I am following the suggestions and feedback from all of you,

...

Thank you very much!
